reComputer Industrial RK3576 Edge AI Box, 4GB RAM, 32GB eMMC
Pre-order: this item is not in stock yet. Order now and we will ship it from our Woodbridge, Ontario warehouse as soon as our stock arrives.
This fanless, DIN-rail mounted box uses the Rockchip RK3576 with a 6 TOPS NPU. It is built for panels and cabinets: isolated RS485, CAN FD and digital I/O connect to field equipment, and a wide 9 to 36V input suits industrial power. This listing is the 4GB RAM, 32GB eMMC configuration.
What you can build
- Industrial data gateway for RS485 and CAN FD devices
- Vision AI for inspection or detection at the machine
- Local processing before sending data to a SCADA or cloud system
- Edge controller in a DIN-rail cabinet
Key specifications
| Processor | Rockchip RK3576, 4x Cortex-A72 at 2.2 GHz + 4x Cortex-A53 at 2.0 GHz |
|---|---|
| NPU | 6 TOPS (INT8) |
| Memory | 4GB LPDDR5 |
| Storage | 32GB eMMC, M.2 Key M 2280 slot for NVMe SSD or AI accelerator |
| Networking | Gigabit Ethernet, Wi-Fi 6, Bluetooth 5.4, Mini-PCIe for optional 4G/LoRa/Wi-Fi HaLow |
| Industrial I/O | 2x isolated RS485, 1x isolated CAN FD, 1x isolated DI, 1x isolated DO |
| Other I/O | 2x USB 3.0 Type-A, USB-C with DisplayPort, nano SIM slot, 3.5 mm audio |
| Power | 9 to 36V DC terminal block |
| Cooling | Fanless aluminium enclosure |

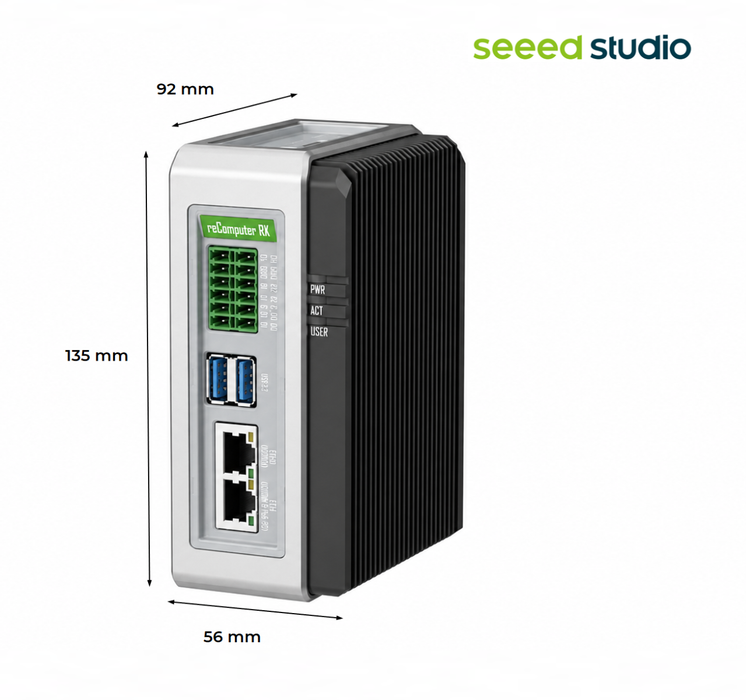

| Size and weight | 131 x 94.5 x 56 mm, about 746 g |
| Operating temperature | 0 to 60 C with 0.7 m/s airflow |
| Manufacturer warranty | 2 years |
Compatible software and platforms
Armbian OS (pre-installed).
What's in the box
- reComputer Industrial RK3576
- DIN-rail clip
- Screw pack
- 12V 3A power adapter with US/EU/UK/AU plugs
- DC jack to screw terminal adapter
- 6x2-pin terminal block connector
- 120 ohm resistors (5)
- Wi-Fi/BLE antenna
- User manual
Buy separately
- NVMe SSD (optional)
- 4G, LoRa or Wi-Fi HaLow modules (optional)
- DIN rail and cabinet hardware
Setup
Mount on a DIN rail, wire power and field devices, then log in over the network or a display to configure the OS.
Specifications and package contents are from the manufacturer's product page and may change between production batches.
