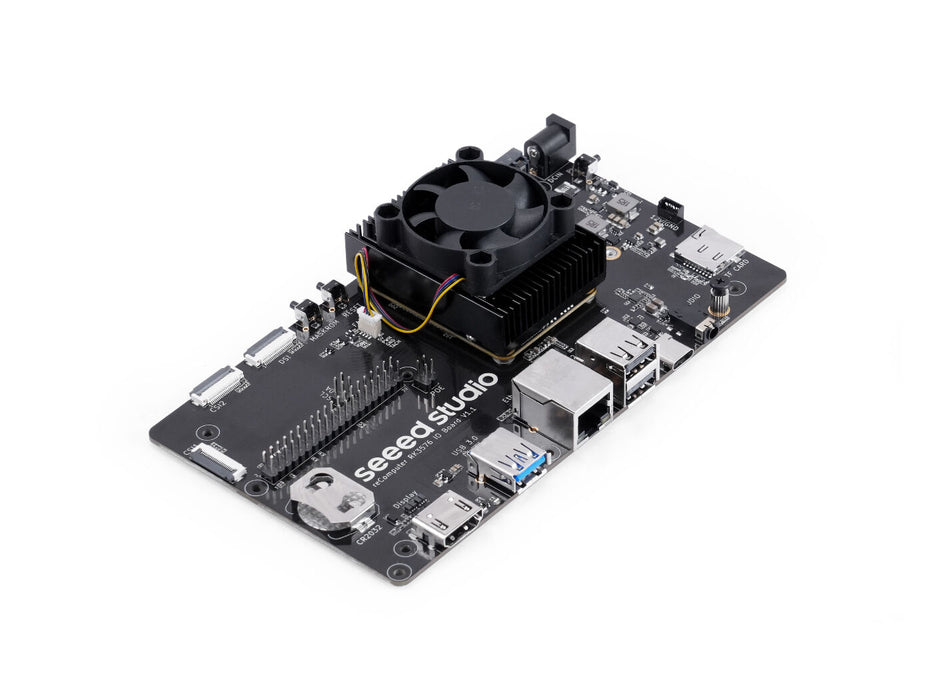

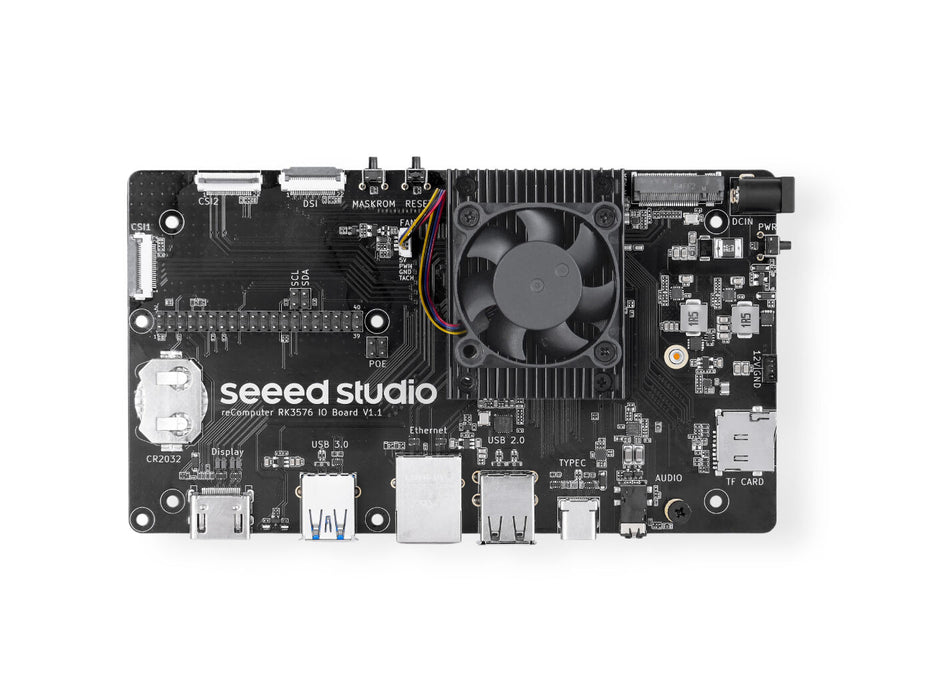

The RK3576 Dev Kit is an open board-level platform for building and testing Rockchip edge AI projects before moving to a custom carrier board or enclosure. It combines a compute module with an I/O board, active cooling and a power adapter, and comes with Armbian already installed.
What you can build
- Prototyping smart cameras and AI terminals
- Testing vision models on the 6 TOPS NPU
- Evaluating a module before designing your own carrier board
- Learning embedded Linux with a 40-pin header
Key specifications
| Processor | Rockchip RK3576, 4x Cortex-A72 at 2.2 GHz + 4x Cortex-A53 at 2.0 GHz |
|---|---|
| NPU | 6 TOPS (INT8) |
| Memory | 8GB LPDDR5 |
| Storage | 64GB eMMC, microSD slot, M.2 Key M 2280 slot |
| Networking | Gigabit Ethernet (PoE needs an add-on module), Wi-Fi 6, Bluetooth 5.4 |

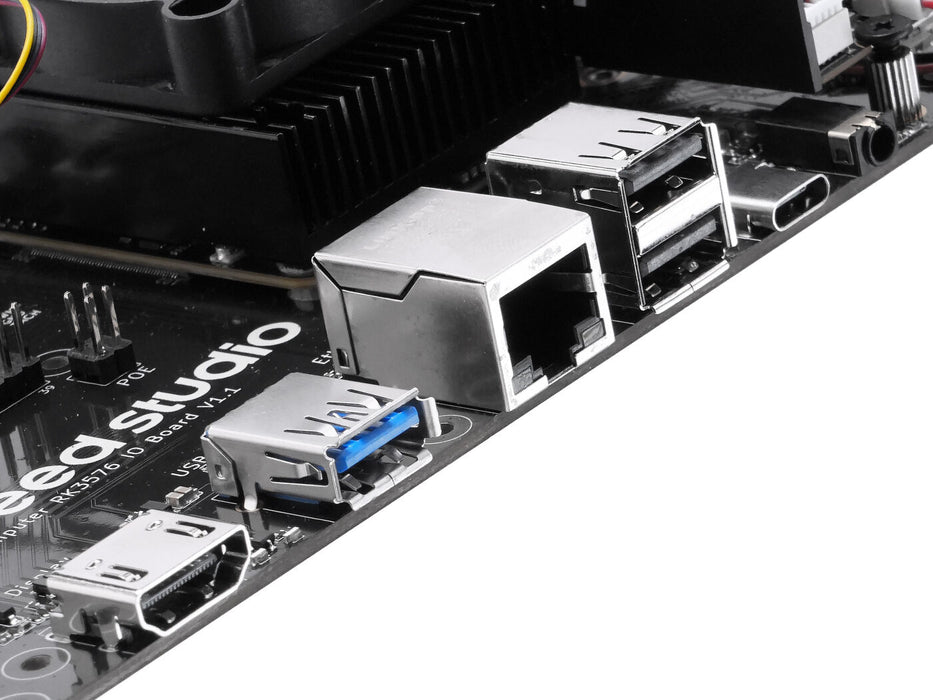

| I/O | 1x USB 3.0, 2x USB 2.0, USB-C with DisplayPort, HDMI, 4-lane MIPI DSI, 4-lane and 2-lane MIPI CSI, 40-pin header |
| Power | 9 to 19V DC |
| Cooling | Heatsink and fan, pre-assembled |
| Operating temperature | 0 to 65 C |
| Manufacturer warranty | 1 year |
Compatible software and platforms
Armbian (pre-installed), Debian, Ubuntu, Android 14+ and balenaOS.
What's in the box
- reComputer RK3576 module (8GB/64GB)
- RK3576 I/O board
- 12V 3A power adapter with US/EU/UK/AU plugs
- 32GB microSD card
- Active cooling (heatsink and fan, pre-assembled)
- Wi-Fi/BT FPC antenna
- Wi-Fi/BT external rod antenna
Buy separately
- PoE module if you want Power over Ethernet
- MIPI camera or display
- Enclosure
Setup
Connect the antennas, a display or network and the 12V adapter, then boot into Armbian.
Specifications and package contents are from the manufacturer's product page and may change between production batches.
