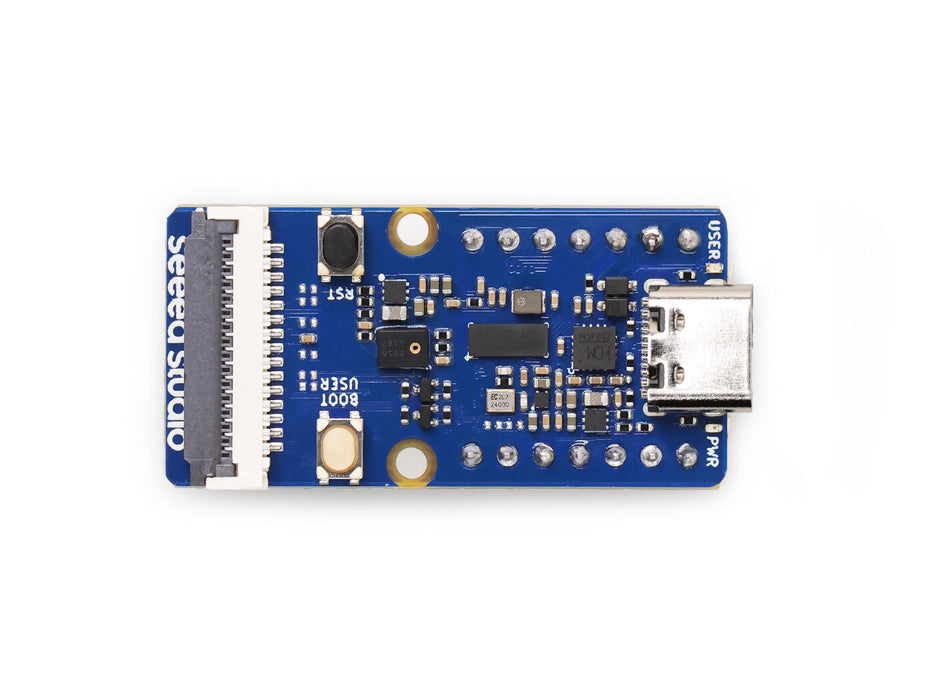

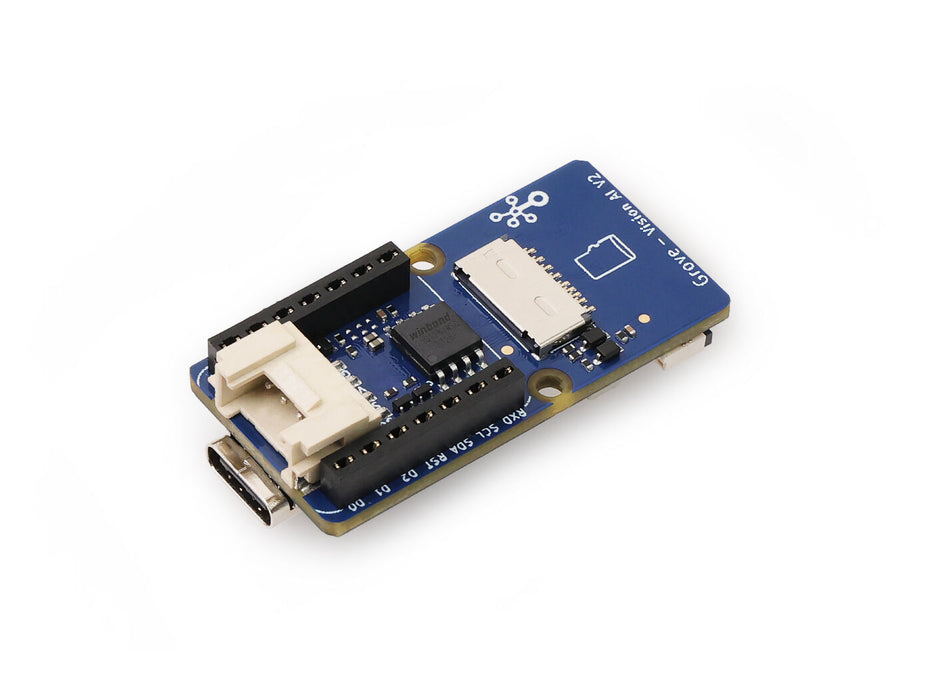

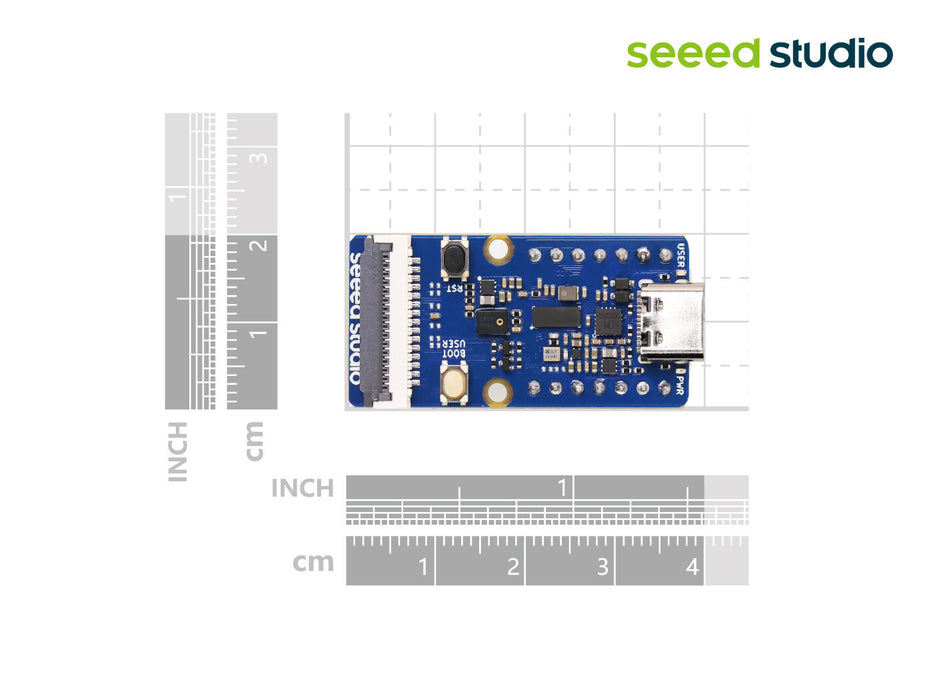

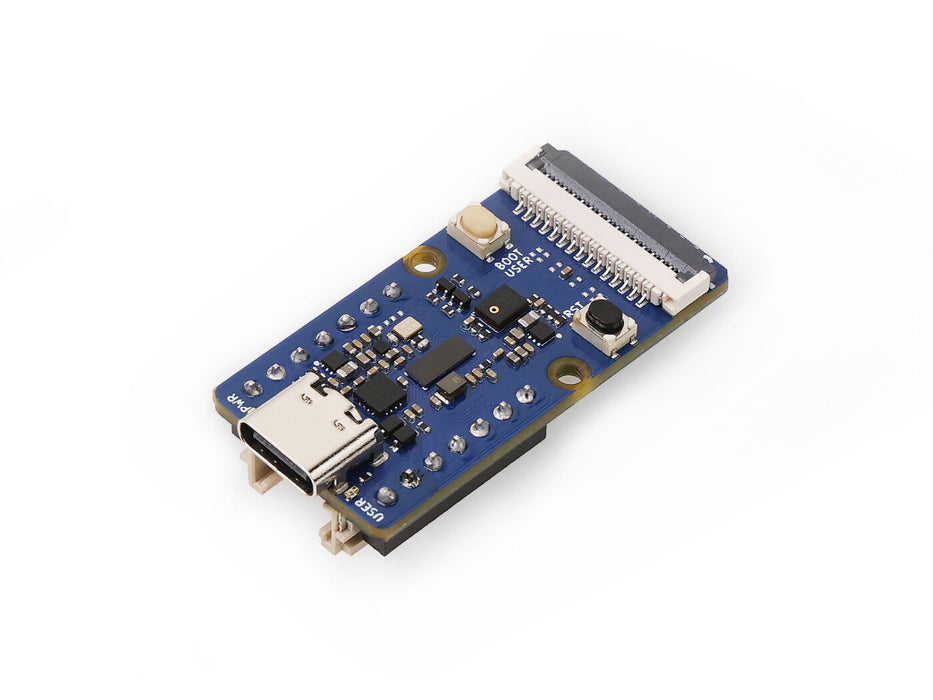

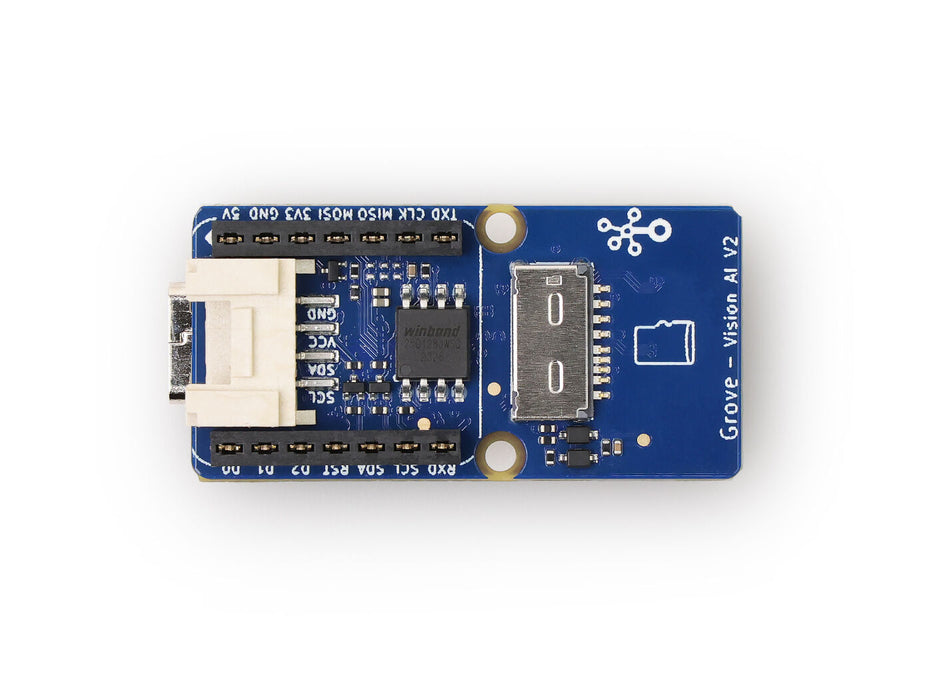

Grove Vision AI Module V2 (Camera Not Included)
by Seeed Studio
Original price
$61.23
-
Original price
$61.23
Original price
$61.23
$61.23
-
$61.23
Current price
$61.23
Grove Vision AI V2 is a low-power microcontroller board for running small vision models. It uses the Himax WiseEye2 HX6538 with an Arm Ethos-U55 neural processor and connects to XIAO, Arduino, Raspberry Pi or ESP32 boards. A camera is not included: add any Raspberry Pi compatible CSI camera.
What you can build
- Battery-powered object or person detection
- Adding vision to an Arduino or XIAO project
- TinyML learning with no-code models in SenseCraft AI
- Sending detection results to Home Assistant through a XIAO
Key specifications
| Processor | Himax WiseEye2 HX6538, dual-core Arm Cortex-M55 (up to 400 MHz and 150 MHz) |
|---|---|
| NPU | Arm Ethos-U55, up to 400 MHz |
| Memory | Up to 2432KB configurable system memory |
| Camera interface | CSI, compatible with Raspberry Pi cameras |
| Interfaces | I2C, UART, SPI, USB Type-C, Grove |
| Onboard | PDM microphone, SD card slot |
| Input voltage | 5V |
Compatible software and platforms
SenseCraft AI, Arduino IDE, TensorFlow and PyTorch models (MobileNet, EfficientNet-Lite, YOLOv5, YOLOv8), MicroPython, CircuitPython and PlatformIO through a host board.
What's in the box
- Grove Vision AI V2 board
- Cable
Buy separately
- CSI camera, for example the OV5647-62 FOV camera module for Raspberry Pi
- Host board such as Seeed Studio XIAO (optional)
- SD card (optional)
Setup

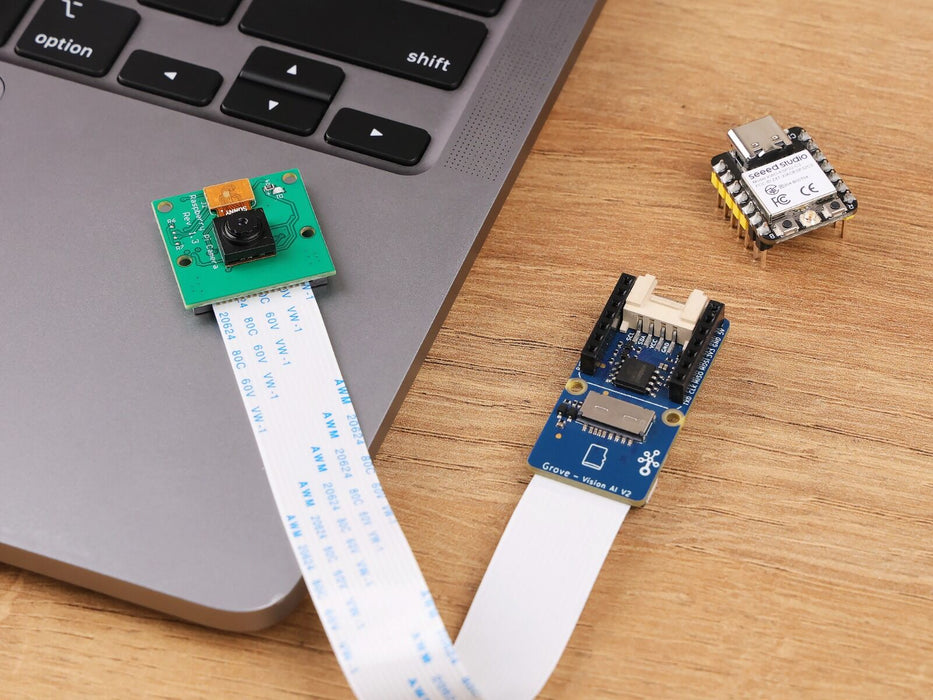

Connect a CSI camera and plug the board into a computer with USB-C, then flash a model from the SenseCraft AI web page.
Specifications and package contents are from the manufacturer's product page and may change between production batches.
