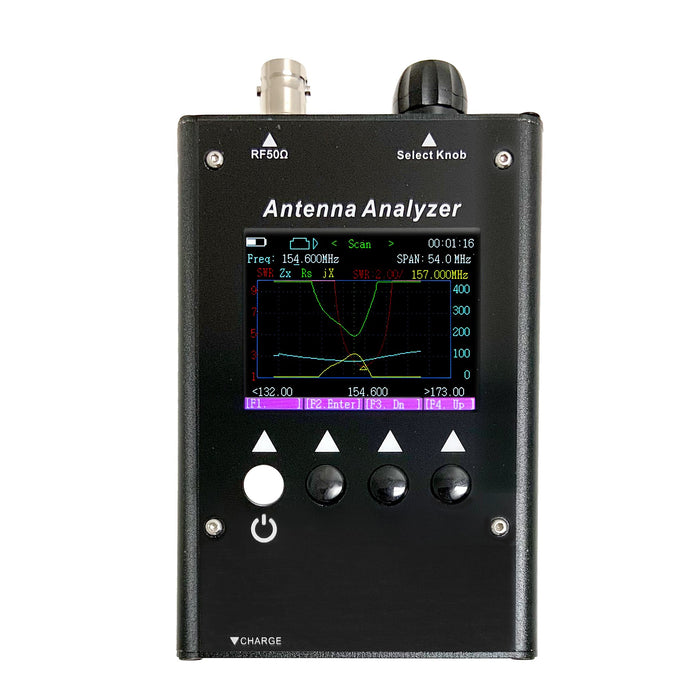

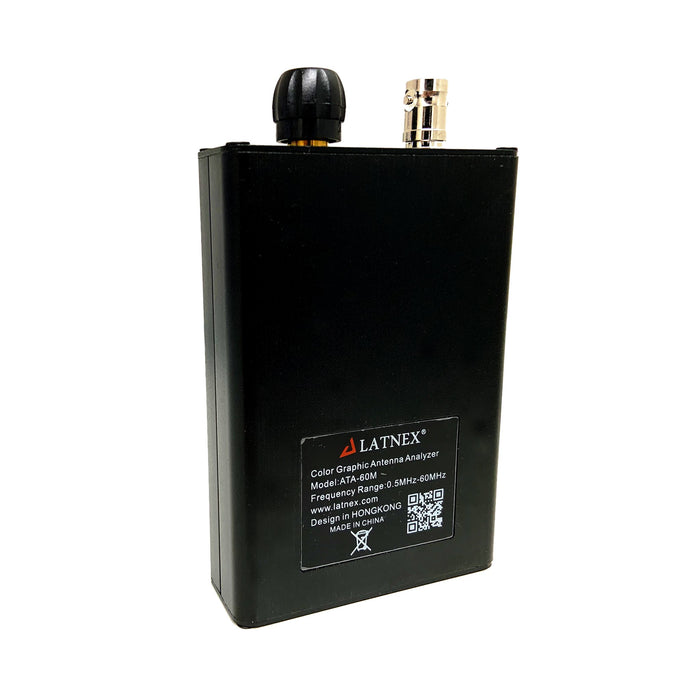

LATNEX ATA-60M 0.5-60MHz Color Graphic Antenna Analyzer

Original price $210.00 - Original price $210.00
Original price
$210.00
$210.00 - $210.00
Current price $210.00

LATNEX® ATA-60M antenna analyzers designed for testing, checking, tuning or repairing antennas and antenna feed lines. Mainly, these are S.W.R. (Standing Wave Ratio) and impedance measurement instruments (vector impedance analyzers). Easy-to use measurement modes make LATNEX® attractive for professionals and hobbyists. It is quite important that graphical display of various parameters over a wide frequency range is a key feature of these analyzers which significantly reduces the time required to adjust an antenna.

Main Features:
       ■   2.2 ” precision LCD screen, High-lumen LCD brightness,  easy to read in direct sunlight
       ■   Heavy duty Aluminum enclosure, strong anti-interference ability.
       ■   Very compact and convenient for field use
       ■   Built-in rechargeable Li-ion battery
       ■   Full Band control (No need select Band )
       ■   Easy setup, only four control buttons with convenient on-screen  soft menus
       ■   Constant Battery Status Indicator and Auto Shut-off
       ■   Built-in timer shows elapsed time when unit is turned on
       ■   High efficiency IC, low power consumption, the longest working hours
       ■   More choice measurement frequency Span .
       ■   One button quick scan mode HF1,HF2,HF3 or 3 band by full screen.
       ■   Auto marker the Best s.w.r. level reference


Specifications:
Model No. ATA-60M
Frequency Range: 0.5-60MHz
Connector: BNC  (50 OHM)
RF Output Power: 1-1.5V(5 - 10dB)
Frequency Step: 0.1/1/10/100/1000KHz
V.S.W.R. Range: 1.00-19.99
ZRX Range: 0-99.9
Build-in Battery : 3.7V 900mah ,Li-ion 14500
Voltage input : DC5V> 500mA
Frequency stability: <0.5PPM
Span width: 0.54MHz/1.35MHz/2.7MHz/13.5MHz/27MHz/62.1
Charger indicator:  Two-color LED Hidden (when not charging) there are three instructions state:
1, charging (red) ;
2, charging is completed (green)
3, Battery fault (flashing)
Charger Plug: Standard Micro USB connector
Size:  70 x 120 x 25 mm
Colour Display: TFT LCD 320 x 240 pixels
Weight:

172g



Power Management
Power Source: Size 14500 of Lithium battery.
Charge Controller: Smart charger, LED charging-status indicator
Voltage Monitor: On-screen DVM, plus battery condition icon
Power Savers: Auto-off timer, Auto Run/Stop RFgenerator control
Interface

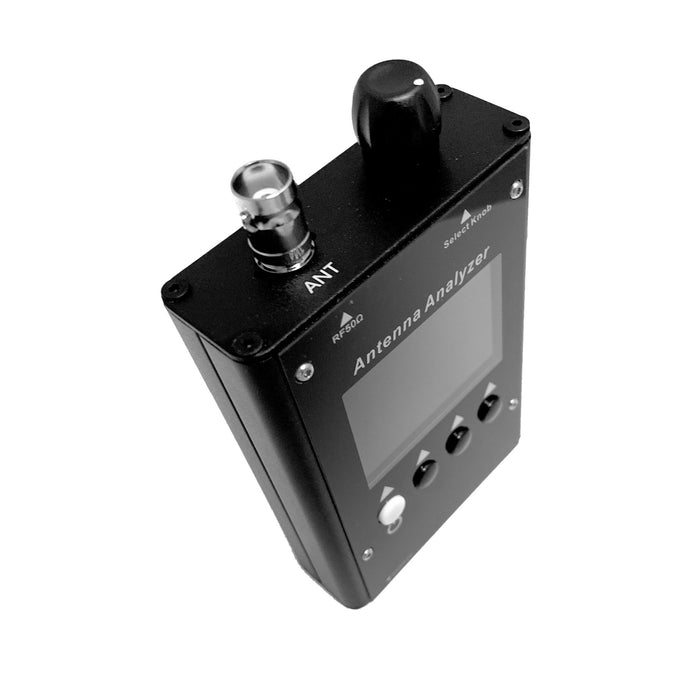

RF Connector: BNC -female

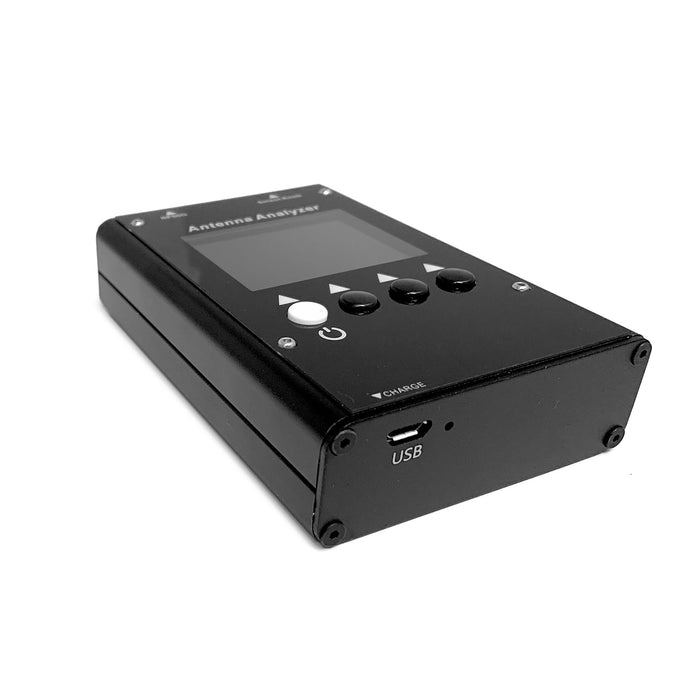

 Charge Connector: Micro-USB
Control and Display
SPAN: 0.27/0.54/1.35/2.7/5.4/13.5/27/62.1MHz
LCD: 2.2 inch high-output color TFT
Function Keys :  4 button, with on-screen (soft-menu) identifiers
Tuning:  Rotary encoder with press-in tuning-step selection
Weight and Dimensions
Case: Aluminum metal
Size: 7 cm wide x12cm height H x 2.5 cm
Weight: 6.1 oz (0.172 kg)



Turn on and off the power
      Turn on the power, Press and hold White button when the dot disappear
       from left up angle ,. top Menu  appeared on the screen.
      Turn off the power, You have 2 method :
       a)On Top Menu page ,Press and hold the  White [F1 ]  button at 5 second .
       b)On Top Menu page , Rotary encoder on "Power off", Press the [F2 Enter]

1.1Function Select
      You can turn the knob select you want function and press [F2.Enter] button .

2.0 ANTENNA TEST EXAMPLES  by Scan mode
2.1[Scan] mode page
     In the Top Menu  screen: Rotary encoder on "Scan", Press the [F2 Enter],     to frequency mode measurement button, enter Scan­ (scan mode) screen.
  Press [F.2  scan ],button to start the scan operation. During scanning,  in order to ensure measurement accuracy, each frequency will stay for  short while. one scanning cycle  will take about 1-2 seconds.       Once SCAN is done, it will  enter ”Present” mode (result) screen
 You have  results on the screen :  Show the SWR curve only (because default setting SWR curve only , Zx curve, Rs curve Disable) You can Enable other curve on the screen:  On Top Menu page,
     Rotary encoder on "Zx", Press the [F2 Enter] to enable .  Other cure will Disable when Power Off , If want enable in the future,  Rotary encoder on "Save", Press the [F2 Enter] to save setting .

2.2  1. lnfull (default SCAN range  0.56MHz -59.9MHz,span 62.1MHz )
          * Long press to [SCAN ]and press [F3 UPDn] select "1.Infull",and then release the scan button.
       2.lrnMk=(Learn marker move to center frequency)
          * Long press to [SCAN ]and press [F3 UPDn] select "2.IrnMk",and then release the scan button.
2.3  [View]
     view the scan frequency point on the curve on each scan of the specific parameters of the measurement results.
    - Press the  [F3.View ] button to start the view operation mode. rotary encoder ,the white triangle curve marker  is move
    - Dot scale will display on screen, Press bottom change the Dot  scale, You have 3 options of Dot scale mode for choose,[Dot =x1] [Dot=x10][Dot= x25] . (230KHz,2.3MHz,5.8MHz)
     SWR Full scale will display on screen, Press bottom change the graphically plot SWR, You have 3 options scale  mode for choose, [SWR=x2 ][SWR= x 0.5][SWR=x1] .(1-9,1-19,1-4.5)

2.4[ Quick 1] start Scan mode:
     Quick view the scan frequency point on the curve on each scan
        Press the button [Quick     1 ]  to start the Quick 1 operation mode .You have 3 options scan mode for choose .
     1)Press the button [F1. Scan 1 ]    0.5 to 27.3MHz can of the specific parameters of the measurement results.
     2)Press the button [F2. Scan 2 ]  16.6 to 43.4MHz can of the specific parameters of the measurement results.
     3)Press the  button[F3. Scan 3 ]  33.6 to 60.0MHz can of the specific parameters of the measurement results.

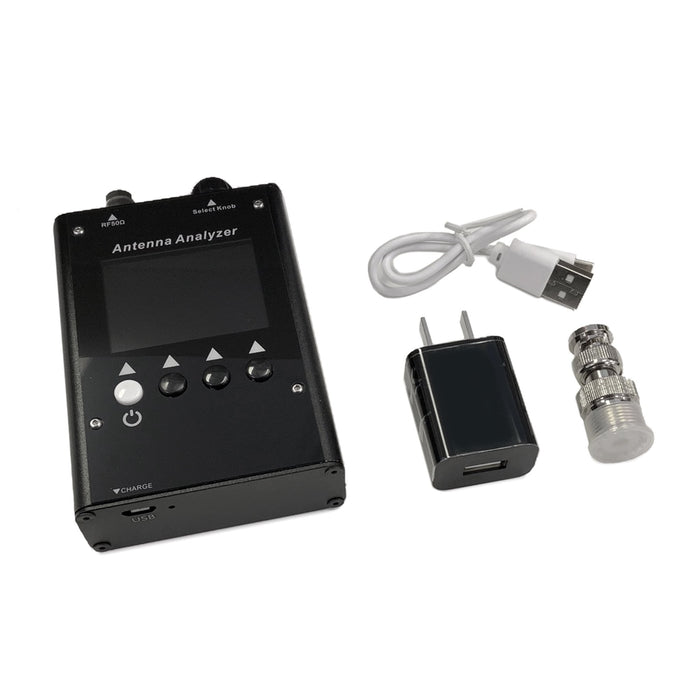

PACKAGE CONTENTS:

1 x LATNEX® ATA-60M  (ENGLISH VERSION) Color Graphic  Antenna Analyzer
1 x English User's Manual
1 x Micro USB Charger Cable
1 x AC Adapter 100-240V (Depends on your country)
