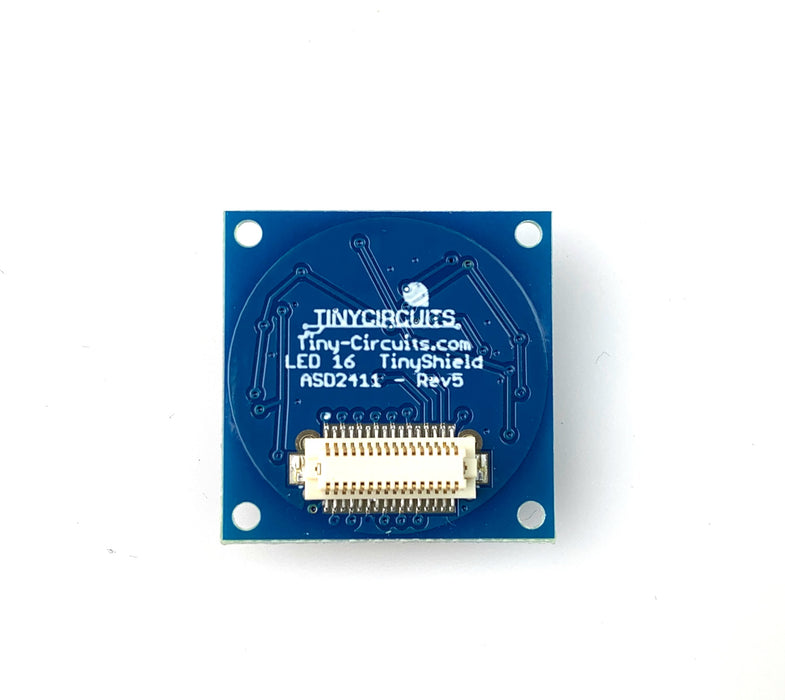

16 Edge LED TinyShield

SKU: ASD2411-R-LG
$18.65
QTY:

DESCRIPTION

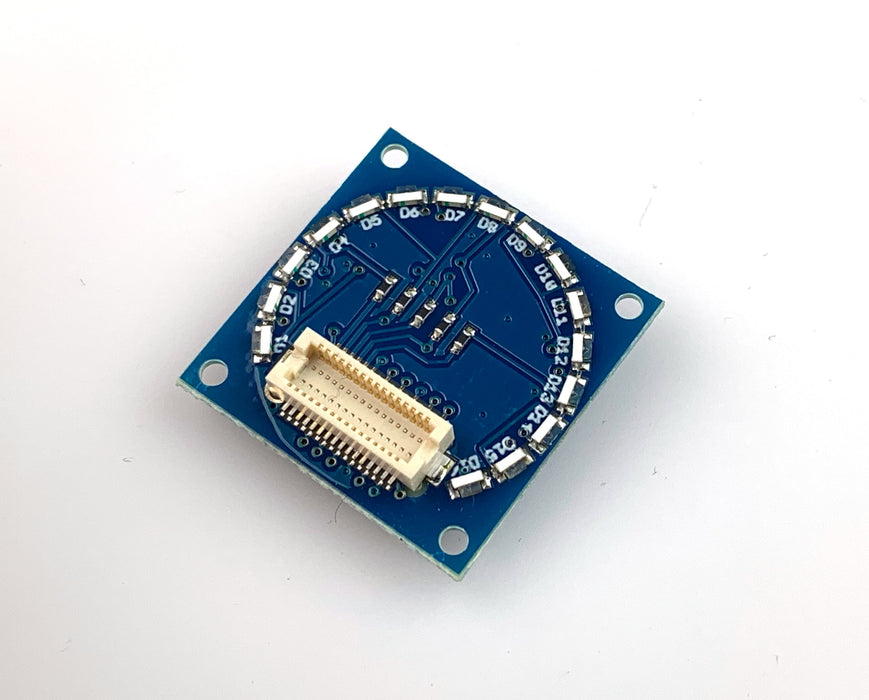

The 16 Edge LED TinyShield allows some cool and easy LED indications using only five I/O signals. The 16 LEDs are mounted around the outside of the board, and can easily be seen even when the LED board is in the middle of a TinyShield stackup. The LEDs are arranged using Charlieplexing, which is a technique to allow for control of multiple LEDs using fewer I/O signals. Available with Red, Green and Amber LED color options.

To learn more about the TinyDuino Platform, click here


    TECHNICAL DETAILS

    To see what other TinyShields this will work with or conflict with, check out the TinyShield Compatibility Matrix

    LED Specs

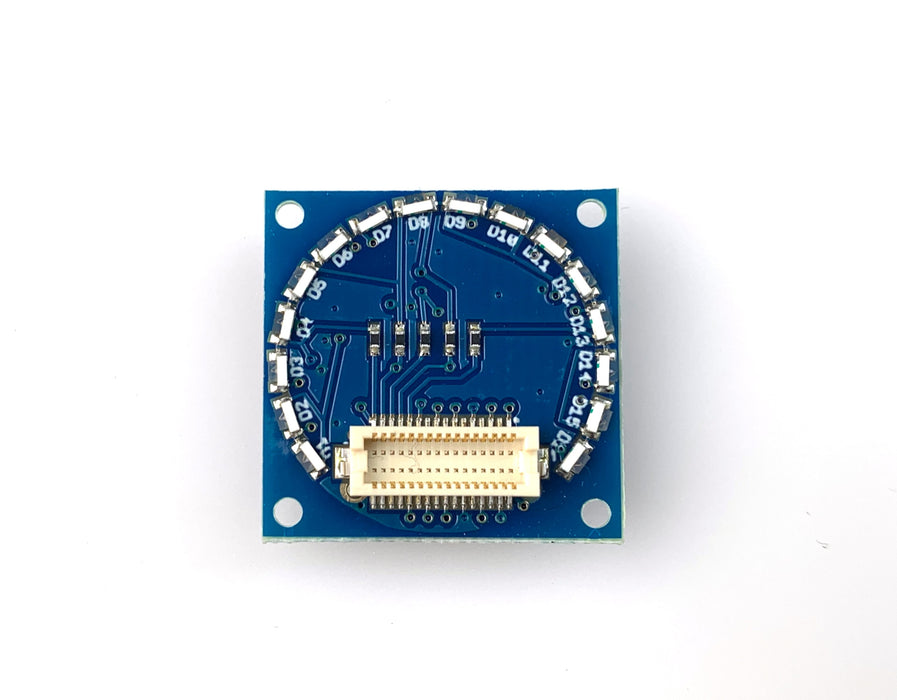

    • 16 Side Mounted LEDs around the edge of the board
    • Charlieplexed IO on 5 signals
    • Available in Green, Amber or Red

    TinyDuino Power Requirements

    • Voltage: 3.0V - 5.5V
    • Current:
      • 1.5mA per LED (3.0V)
      • 5.0mA per LED (5.0V)
      • Due to the low current, this board can be run using the TinyDuino coin cell option

    Pins Used

    • Pins 5, 6, 7, 8, and 9 are used, see schematic or sample code for connections

    Dimensions

    • 20mm x 20mm (.787 inches x .787 inches)
    • Max Height (from lower bottom TinyShield Connector to upper top TinyShield Connector): 5.11mm (0.201 inches)
    • Weight: 1 gram (.04 ounces)

    Notes

    • If the top connector is not needed, there is also the Circle LED TinyShield which has LEDs that circle the entire board.
    • The LEDs are hooked up using Charlieplexing, a technique for driving many LEDs with only a few IO signals.  See the tutorial to learn more about this and use our free library to control these easily.
