30:1 Gear Reduction Motor

30:1 Gear Reduction Motor

by TinyCircuits
$13.30 - $13.30
$13.30
$13.30 - $13.30
$13.30

DESCRIPTION

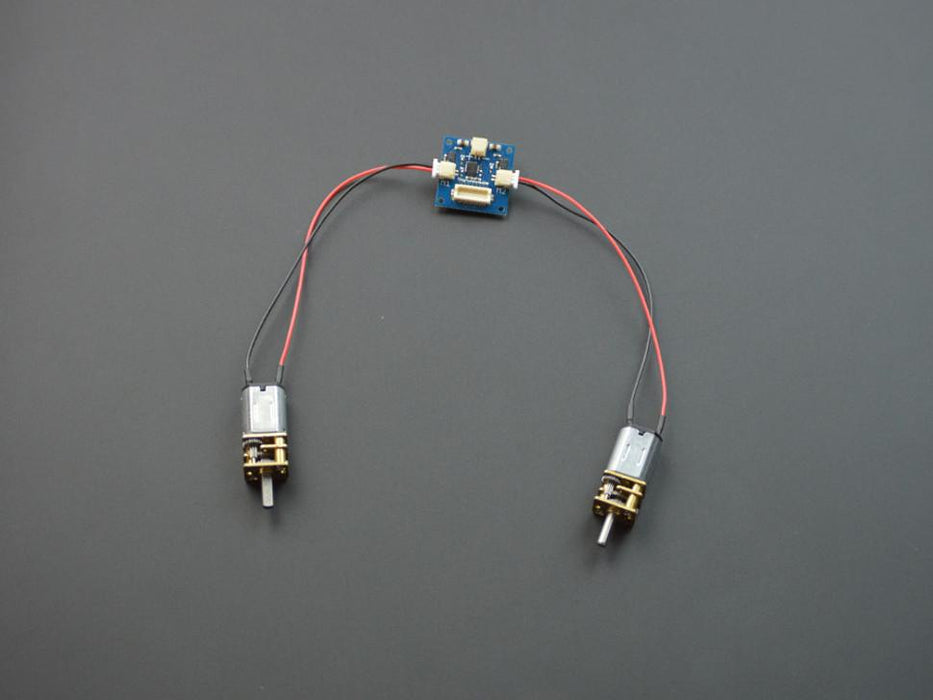

Add motion to your TinyDuino project! This gear motor uses the same JST connector that can be found on our Dual Motor TinyShield, meaning it can be plugged right in without any soldering or crimping.

This motor has a built in gearbox which achieves 30:1 speed reduction for high torque. This makes it great for applications like robotics and anything else that would require high torque in a small package.

Fits any wheel, gear, or other attachment that fits a 3mm diameter D profile shaft, like our 45mm Wheels.



    TECHNICAL DETAILS

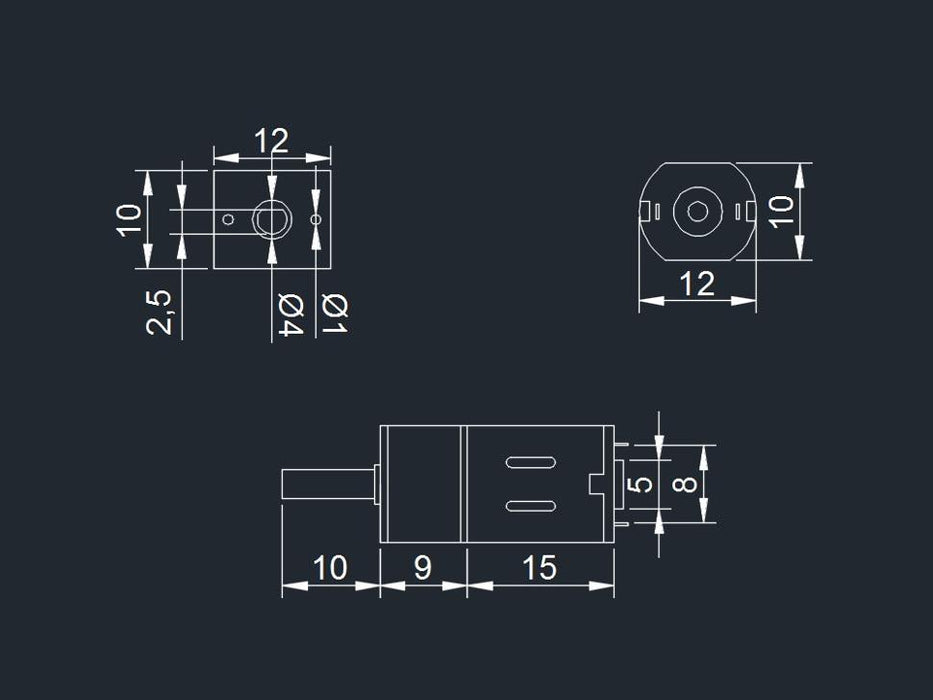

    Dimensions

    • Wire Length: 100mm
    • Shaft Diameter x Length: 3mm x 9mm
    • Motor and Gearbox Dimensions: 26mm L, 12mm W, 10mm T
    • JST-SH Connector Pitch: 1mm (0.039")
    • Maximum Voltage: 6V
    • No Load Current: 30mA
    • RPM at 6V: approx. 400rpm
    • RPM at 3.7V: approx. 220rpm
