TinyLily LED 1206

TinyLily LED 1206

by TinyCircuits
$1.32 - $1.32
$1.32
$1.32 - $1.32
$1.32

DESCRIPTION

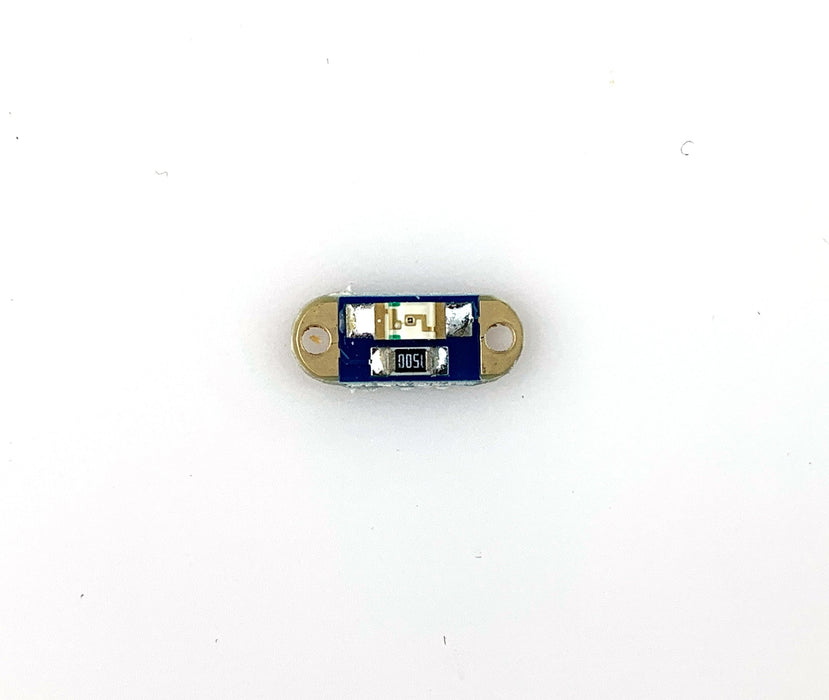

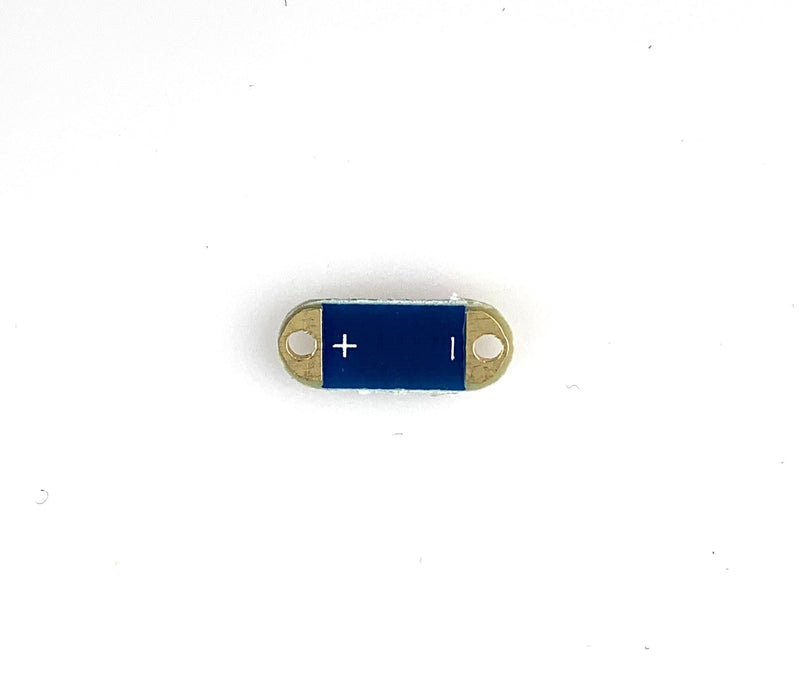

A standard size LED in an extremely compact size of 10.2mm x 4mm, with two standard TinyLily sewtabs and a current limiting resistor, so you don’t have to worry about blowing it up or adding an external resistor. Available with Red, Green and Amber LED color options.

    TECHNICAL DETAILS

    • Washable
    • Two Sewtabs – 1.2mm in diameter, easy to use with standard conductive thread and needles
    • Robust Gold Finish – makes soldering easy and is non-corrosive

      Power Requirements

      • Voltage: 3.0V - 5.5V
      • Current:
        • 1.5mA per LED (3.0V)
        • 5.0mA per LED (5.0V)

      Dimensions

      • Dimensions: 10.2mm x 4mm (0.40 inches x 0.18 inches)
      • Max Height: 1.44mm (0.057 inches)
      • Ultra-thin 0.61mm (0.024 inches) PCB
      • Weight: .06 grams (0.002 ounces)

      Downloads

      Learn

      Color: Green
